Details

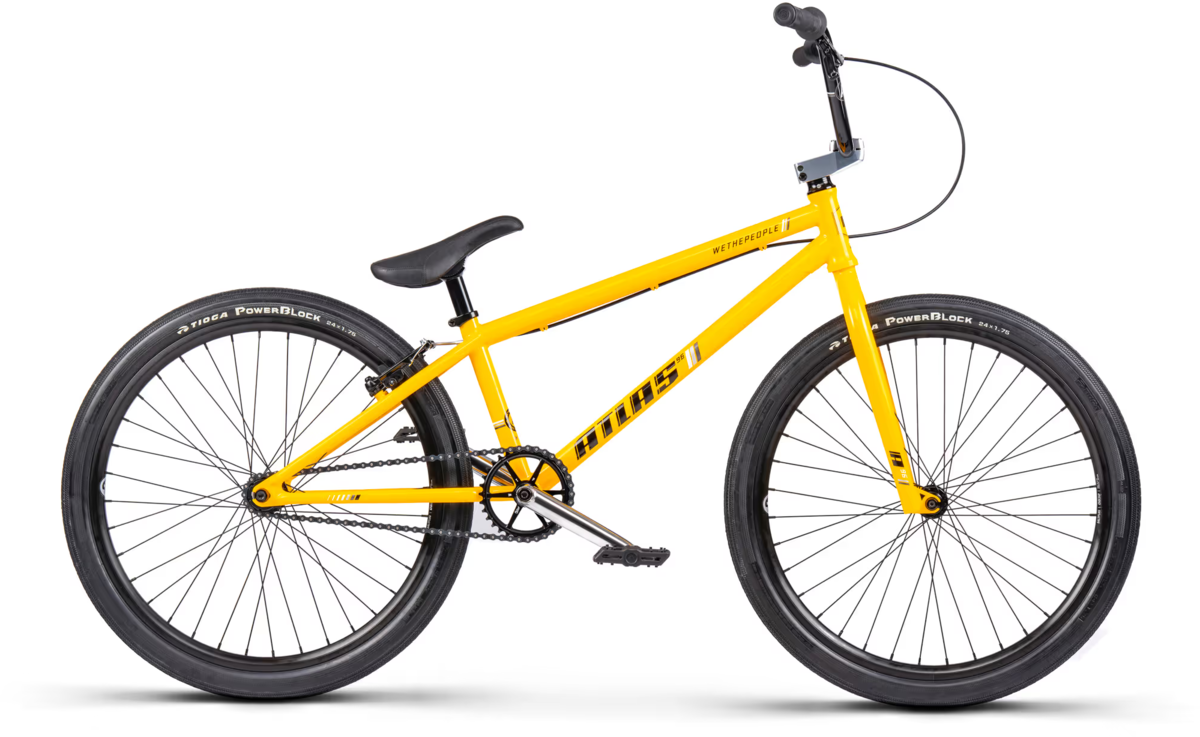

A bike with a larger following than we’d ever anticipated, the Atlas is the perfect bike for those times when bigger is better. Our 24” wheeled BMX features a throwback to our racing ancestry. The Glossy finish is completed with race-inspired geometry, a V-brake and even a WETHEPEOPLE Patrol stem and 33t sprocket, allowing you to really put your foot down and get your sprint on. Whether you’re down the trails, at the pump track or just heading into the city, the Atlas is so much fun to ride, you’ll have hard time putting it down.
Top Tube Length | 21.75" |
---|---|
Chain Stay Length | 15" |
Head Tube Angle | 74° |
Seat Tube Angle | 72.25° |
BB Height | 12.25" |
Standover Height | 9.5" |
Specs
Frame | WETHEPEOPLE "ATLAS" frame, 4130 full crmo race inspired frame, tapered CS & SS |
---|---|
Fork | WETHEPEOPLE "ATLAS" fork, butted crmo tubing, cnc steerer |
Rims | SALTPLUS "DB32" aero rim, double wall, 36h |
Hubs |
Front: SALTPLUS "PRO" hub, fully sealed, M6 female bolts, 36h Rear: SALTPLUS "PRO" cassette hub, fully sealed, M6 female bolts, 36h |
Tires | TIOGA "POWER BLOCK" tires, 1.75", front & rear |
Bottom Bracket | SALTPLUS "EURO" bb, 19mm, euro threaded, sealed bearing |
Crankset | SALTPLUS "PRO48" tubular 3pc crank, crmo, 175mm, 48 spline |
Chainrings | WETHEPEOPLE "PATROL" sprocket, cnc, 6061-T6 alloy, 33t |
Cassette/Freewheel | cassette driver, 14t cog, sealed bearing |
Chain | WETHEPEOPLE "SUPPLY" chain, Z510HX type |
Brakes | SALT "ATLAS" v-brake, alloy |
Brake Levers | SALT "ATLAS" v-brake lever, alloy |
Handlebars | WETHEPEOPLE "ATLAS" bar, 4130 full crmo |
Tape/Grips | SALT "EX" grips, 155mm, with flange |
Stem | WETHEPEOPLE "PATROL" topload stem, cnc alloy, 28mm rise, 53mm reach |
Headset | SALT "PRO" int. headset, sealed bearing |
Seatpost | SALT "AM" pivotal seat post, 27.2mm, alloy |
Saddle | ÉCLAT "BIOS" pivotal seat, slim padded (spec subject to change) |
Pedals | ÉCLAT "CONTRA" pedals, nylon/fiberglass |
* Subject to change without notice.
Part Numbers
Option | UPC | MPN |
---|---|---|
Yellow / 24-Inch / 24-Inch | 04055822540551 | 100001652 |
