Details

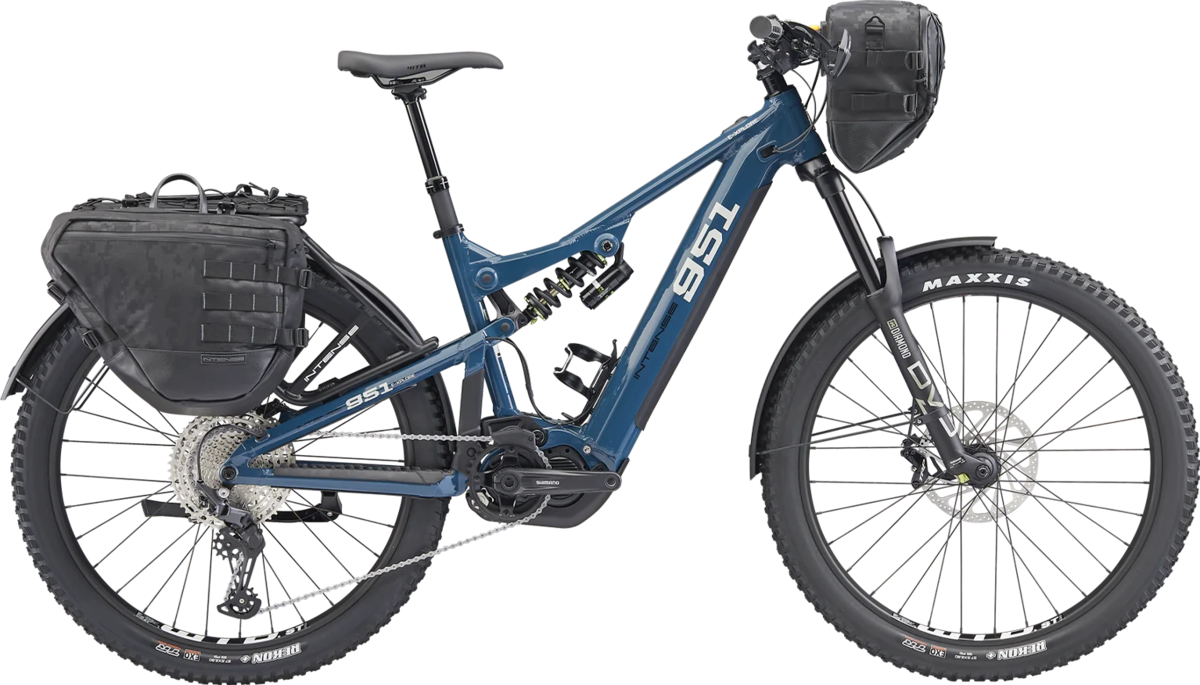

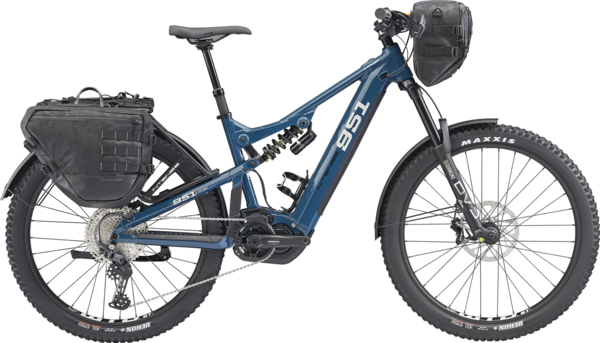

Fueled by the spirit of exploration, the 951 E-XPLORE stands out as a distinctive eBike experience. Crafter on 27.5" wheels and equipped with a tailored rack and bag ensemble, this bike is primed for the ultimate adventure.
Engineered for an unparalleled riding experience, the E-XPLORE eMTB boasts outstanding power and torque capabilities. Designed to take you farther and faster, the E-XPLORE has everything you need for a comfortable ride. Featuring Acerbis handguards, an integrated mudguard, and three bags. Making the E-XPLORE the perfect companion for camping, store runs, mountain biking, picnics, and commutes.
READY FOR ADVENTURE
Embark on your next adventure, fully equipped with all the essentials. With one handlebar bag, two rear pannier bags, and a bungee drawcord to secure any extra items for your trip. Front and rear fenders come standard, keeping you and your belongings dry.
OUTSTANDING POWER AND INTELLIGENCE
Engineered to deliver an unparalleled riding experience with outstanding power and torque capabilities. Equipped with the Shimano E7000 motor and a 504Wh battery, you can effortlessly conquer challenging terrains and steep climbs.
SUPERIOR CONTROL AND SUSPENSION
Equipped with DVO's cutting-edge suspension system to ensure a smooth and controlled ride over varied terrains. The high-performance TRP Trail Evo brakes are engineered to meet the demands of aggressive trail riding.
ROBUST PEDALING PLATFORM
The Shimano Deore 11-speed system gives the rider fluid shifting when paired with the Shimano E7000 motor. This system works harmoniously, so you can confidently embark on long rides and discover the thrill of adventure.
BUILD | E-Xplore |
WEIGHT | 67lbs 9.6oz (Size SM/MD includes pedals, handlebar bags, rear rack, pannier bags, headlight, and tubes), 61lbs 12.8oz (Size SM/MD with pedals, rear rack, and tubes only) |
FRAME | E-XPLORE Performance Alloy Frame. Alloy top link, internal shift, dropper post, brake, display unit routing, e*Spec Chainguide mount pattern, flak guard armor, integrated mud guard, 160mm front travel, 140mm rear travel. |
MOTOR | Shimano E7000 STEPS Motor |
BATTERY | BT-E8035 504Wh Battery |
FORK | DVO Diamond E3 27.5", 160mm, 44mm rake |
SHOCK | DVO Jade R Coil, 185x55mm, 450lbs (SM/MD) / 550lbs (LG/XL) |
HEADSET | INTENSE ZS49/ZS56 |
STEM | INTENSE Recon 35/45mm |
HUBS | INTENSE E-MTN Alloy Hubs |
WHEELS | 27.5" WTB ST i35 TCS 35mm Aluminum, 110x15mm Front / 27.5" WTB ST i35 TCS 35mm Aluminum, 148x12mm Rear |
SPOKES | DT-Swiss Champion |
TIRES | MAXXIS Rekon 3C EXO+ Tubeless-ready, 27.5" x 2.80" Front/Rear |
SHIFTERS | Shimano Deore SL-M5100, 11-speed |
DERAILLEUR | Shimano Deore RD-M5100, 11-speed |
CRANK | Shimano FC-E8000 165mm, 34t |
CASSETTE | Shimano Deore CS-M5100, 11-speed, 11-51t |
CHAIN | KMC E 11 speed |
SADDLE | WTB Volt |
SEATPOST | INTENSE Recon Dropper 31.6mm, 125mm Travel (SM/MD), 150mm Travel (LG/XL) |
BRAKES | TRP Trail EVO, HD-M843, Front/Rear |
ROTORS | TRP 203mm, Front/Rear |
HANDLEBAR | INTENSE Recon Alloy 35, 800mm width, 30mm Rise |
GRIPS | INTENSE Lock-on |

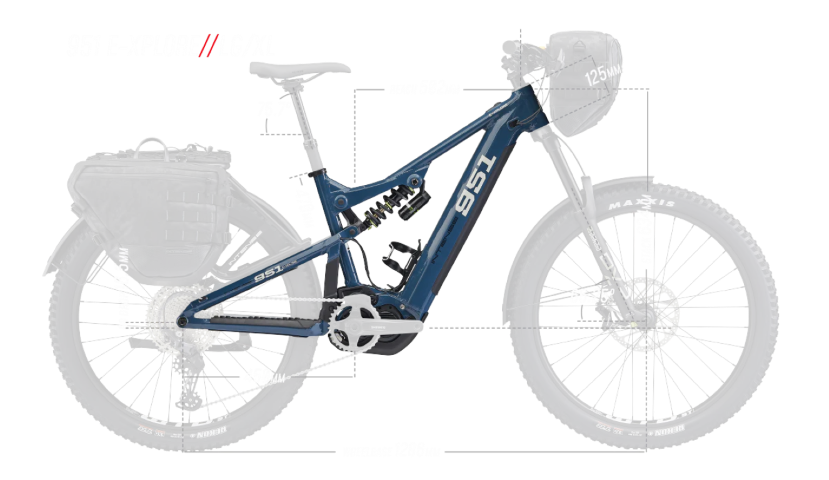

SIZE | (SM/MD) | (LG/XL) |
WHEELBASE | 1227mm | 1286mm |
TOPTUBE LENGTH | 606mm | 664mm |
CHAINSTAY LENGTH | 450mm | 450mm |
HEADTUBE LENGTH | 115mm | 125mm |
HEADTUBE ANGLE | 65.25° | 65.25° |
REACH | 447mm | 502mm |
STACK | 625mm | 634mm |
BB HEIGHT | 344mm | 344mm |
BB DROP | 16.5mm | 16.5mm |
SEATTUBE EFFECTIVE | 75.7° | 75.7° |
SEATUBE ACTUAL | 73.25° | 73.25° |
SEATTUBE LENGTH | 419mm | 470mm |
STANDOVER HEIGHT | 805.8mm | 817mm |
