Details

Suggested Rider Size:
- Height 50-64" / Ages 8-12

WEIGHTS:
Bike Weight: 27 Lbs
Rider Weight Limit: 150 Lbs

Sizes:

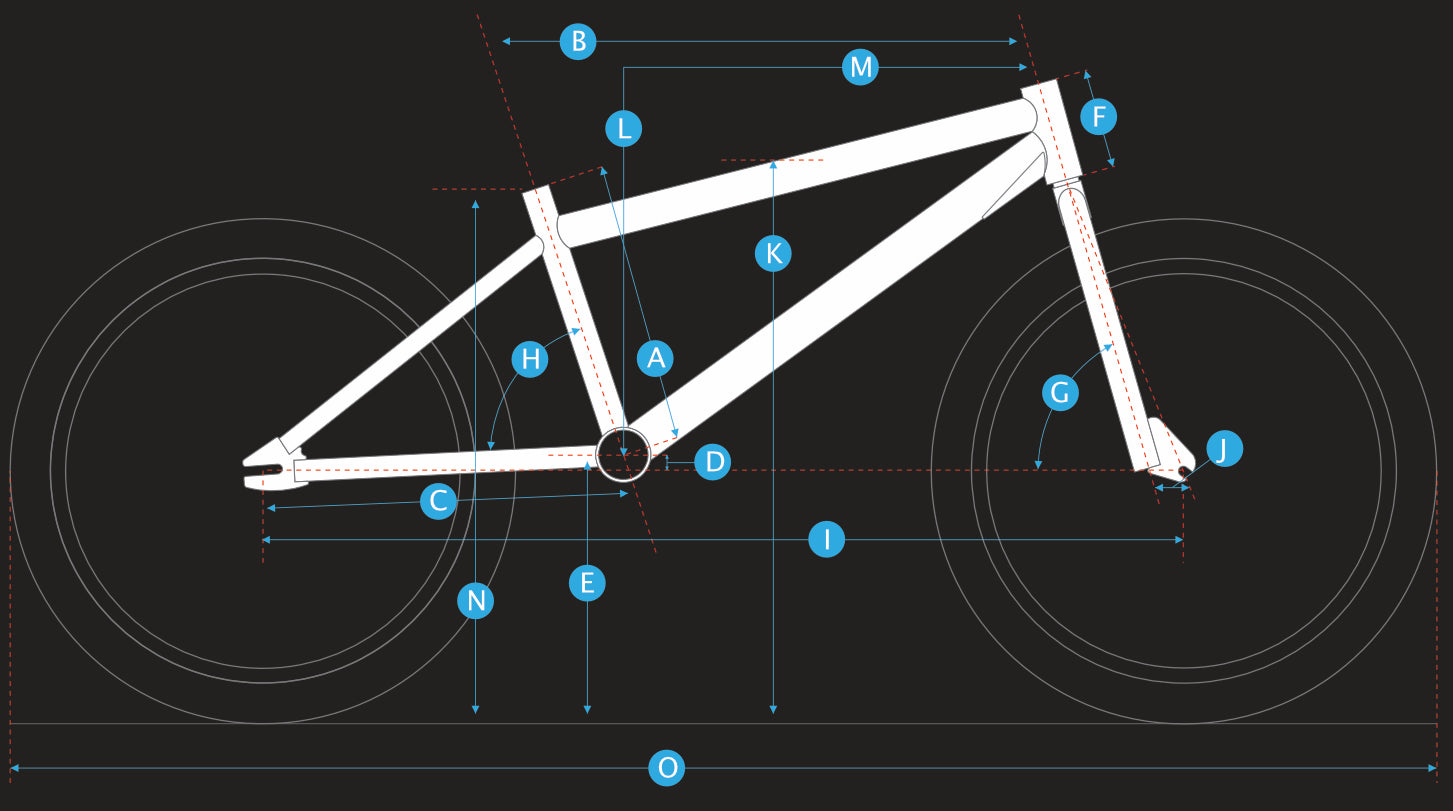

	KEY	mm	inch
Seat Tube Length (BB Center to Top)	A	286	11.3
Top Tube Length (Effective)	B	525	20.7
Chainstay Length	C	368	14.5
BB Drop	D	20	0.8
BB Height (BB Center to Ground)	E	237	9.3
Head Tube Length	F	102	4
Head Tube Angle	G	74°	74°
Seat Tube Angle	H	71°	71°
Wheelbase	I	939	37
Fork Offset	J	35	1.4
Standover Height*	K	570	22.4
Frame Stack	L	0	0
Frame Reach	M	0	0
Seat Tube to Ground	N	523.5	20.6
Overall Length	O	1441	56.7
Crank Length		165	6.5
Handlebar Width		700	27.6
Stem Length		50	2
Seat Post Length		250	9.8

Specs

Frame	High-Tensile Steel, TIG-Welded
Fork	1-1/8" High-Tensile Steel, Straight Legs
Rims	20" x 36H x 14G, Alloy
Hubs	Steel, 36H x 14G with 3/8" Bolt-On Axle
Spokes	14G ED Black with CP Nipples
Tires	20" x 2.125", Black Wall
Bottom Bracket	Steel for OPC, Caged Bearings
Crankset	One-Piece Steel, 165mm
Chainrings	Steel, 42T x 1/2" x 1/8"
Chain	K.M.C. Z410, 1/2" x 1/8"
Brakes	Alloy Linear Pull
Handlebars	Steel, BMX, 27.5" Wide x 7.5" Rise x 22.2 Clamp
Tape/Grips	Kraton Rubber, Black
Stem	Alloy, BMX, Threadless, 28.6 x 50mm x 22.2 Clamp W/4-Bolt Face Plate
Headset	Steel, Threadless, 28.6 x 34 x 30mm, Caged Bearings
Seatpost	Steel w/o Clamp, 25.4 x 250mm, Black
Saddle	BMX, Black
Pedals	BMX Pedal, 1/2"

* Subject to change without notice.

Option	UPC	MPN	Store SKU
Blue Black / One Size / 20-inch	888571086452	671164	BIK29718455K
